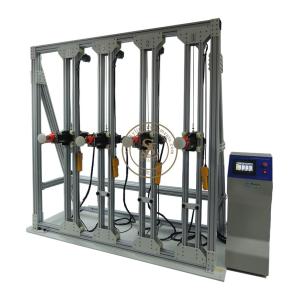

Swings Toys Testing Equipment EN71-8 Horizontal Thrust Tester for Swing Test

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.

Principle

Simulate children to climb toys or swing toys (such as swing) situation, the top of the toy to exert a horizontal force to check whether the toy will be dumped.

Main parameters

​Load load direction level
Loading group four groups, two groups, single group, multiple groups of any combination
Loading method Fixed value, fixed speed
The test speed can be set
Force control mode closed - loop control
Transmission mode Servo motor + Ball screw module
Control mode PLC control

Standards

ISO8124-4 6.1.2/ 6.1.4

Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
surface.
For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not
prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with
the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging
direction. Where a swing element has multiple suspension points, distribute the load equally between the
points (using Table 3 as a guide). Forces on multiple suspension points shall be applied in the same direction
simultaneously.
Observe whether the toy tips over

Push head and force sensor
